How to connect a fluorescent neon lamp
Today's lesson is to explain how to connect a fluorescent lamp or the so-called neon, which is a lamp that is in the form of a long rectangle and is from 50 cm to 1.50 cm in length and consists of a neon lamp, which is a glass tube lined from the inside with a phosphorous substance that helps in the emergence of lighting and make it Quiet, and at each end there are two tungsten wicks, which are filled with a special gas called argon gas and an electric transformer, as well as a compound called the "starter" throttle.
How to connect a fluorescent neon lamp The electricity coming out of the switch is connected through the “phase only” electrical transformer, and for the neutral, it is connected directly to the lamp filament, then the valve is connected to one of the ends of the filament from each side in parallel with the lamp, and this diagram shows how to connect a fluorescent neon lamp.

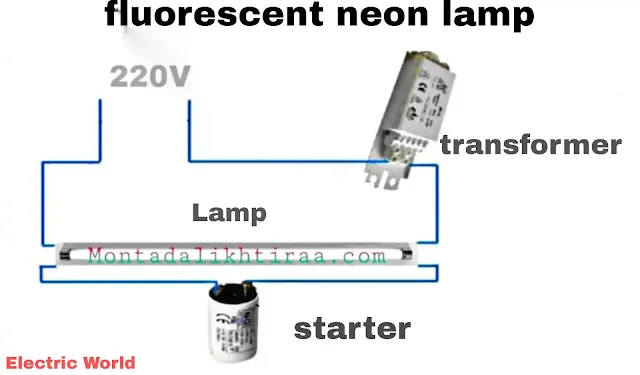

:Neon fluorescent lamp circuit
note : Each wick consists of two ends, meaning in total there are four poles coming out of the lamp, and here is the picture that illustrates what we have explained. It is very important to connect the ground line because the lamp body is made of metal.
